December Update 2019

17 December, 2019

OCIUS + DST Underwater Group achieve Australian first at Summerfest 2019.

From Dec 2 - Dec 6, we attended ‘Summerfest 2019’, marine autonomy trials at HMAS Creswell, driven by a collaboration between DSTG, RAN, academia and industry.

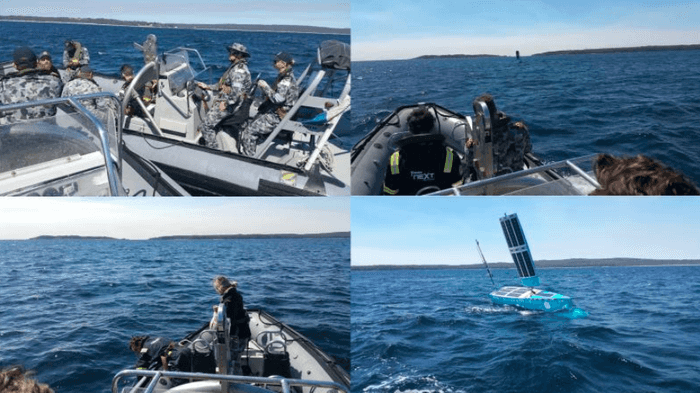

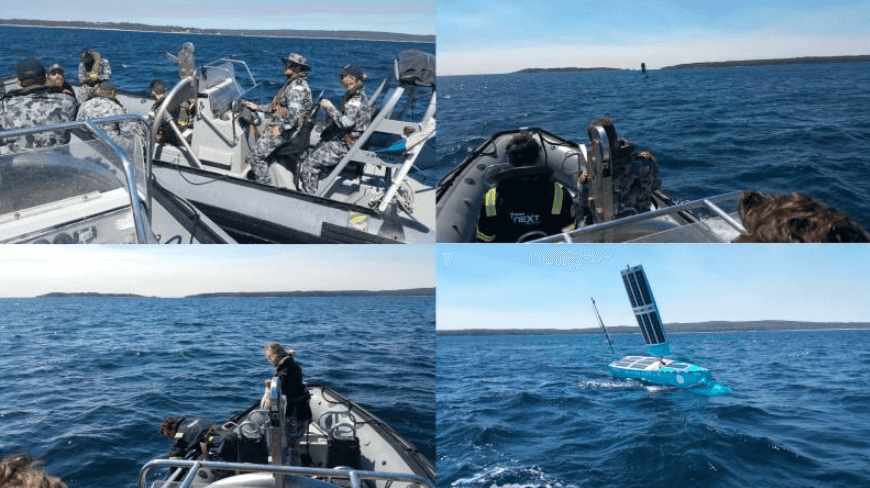

This activity involved two Autonomous Underwater Vehicle (AUVs), a Bluebottle Uncrewed Surface Vessel (USV), support boats, support personnel and observers - photos courtesy of 3ME Technology
This activity involved two Autonomous Underwater Vehicle (AUVs), a Bluebottle Uncrewed Surface Vessel (USV), support boats, support personnel and observers - photos courtesy of 3ME Technology


summerfest 2019 partners


The aim of ‘Summerfest’ was to demonstrate the enhanced speed of Maritime Autonomous Systems (MAS) mine hunting and disposal by allowing activities that are currently conducted in series, with delays for data handling and analysis, to happen in parallel. This involved automated target recognition (ATR) running in real-time on mine hunting systems cueing other systems for classification, identification and disposal as soon as suspect objects were discovered.

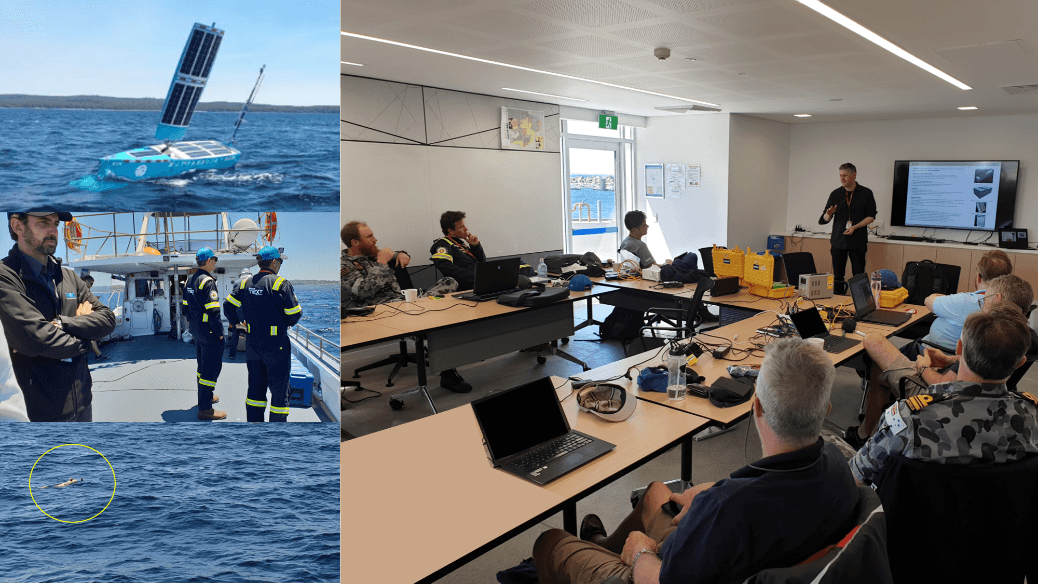

Photos courtesy of Mission Systems
Photos courtesy of Mission Systems

In an Australian first, DSTG and Ocius demonstrated remote mine hunting. A Bluebottle Uncrewed Surface Vessel (USV) was tasked over a minefield as a ‘Communications Gateway’ relaying information and data between a DST Remus Autonomous Underwater Vehicle (AUV) in the minefield and a manned vessel, MV Kimbla, standing off at a safe distance. The Automatic Target Recognition (ATR) on the Remus AUV was able to report positions of mine contacts immediately via the acoustic relay on the Bluebottle USV, back to the command and control (C2) centre.

The DST Remus AUV then surfaced and sent snippets of sidescan sonar data representing the ATR contacts via WiFi to the Bluebottle USV and then back to the C2 centre whilst the Remus AUV was still in the water over the minefield.

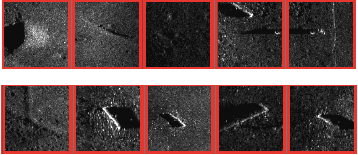

Snippets from the Remus AUV while surfaced in the minefield, transmitted via Wi-Fi to the USV over the minefield and then relayed to the manned support vessel, MV Kimbla standing off, safely out of range
Snippets from the Remus AUV while surfaced in the minefield, transmitted via Wi-Fi to the USV over the minefield and then relayed to the manned support vessel, MV Kimbla standing off, safely out of range

The human operators at the Command and Control (C2) centre or HQ were then able to re-task the Remus AUV via the Bluebottle USV, with ‘reacquire’ missions based on the operator’s analysis of the ATR snippets.

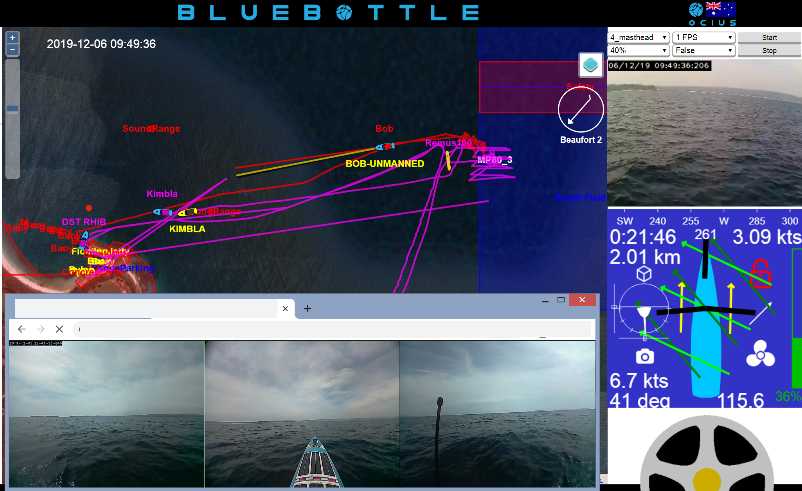

Bluebottle mission control software which was adopted for use as a Common Control System
Bluebottle mission control software which was adopted for use as a Common Control System

Technical Achievements:

  • Escorted AUVs from a safe point to the edge of the active mine hunting zone
  • Enabled operators to instruct the AUV to enter the active mine hunting zone and conduct a search using sidescan sonar with ATR enabled
  • Enabled HQ to see the mine-like contacts reported by the AUV
  • Allowed the operators to remotely view the live status of the vehicle when it was on the surface via a network link through the USV, allowing HQ to restart or reconfigure the vehicle and change its mission

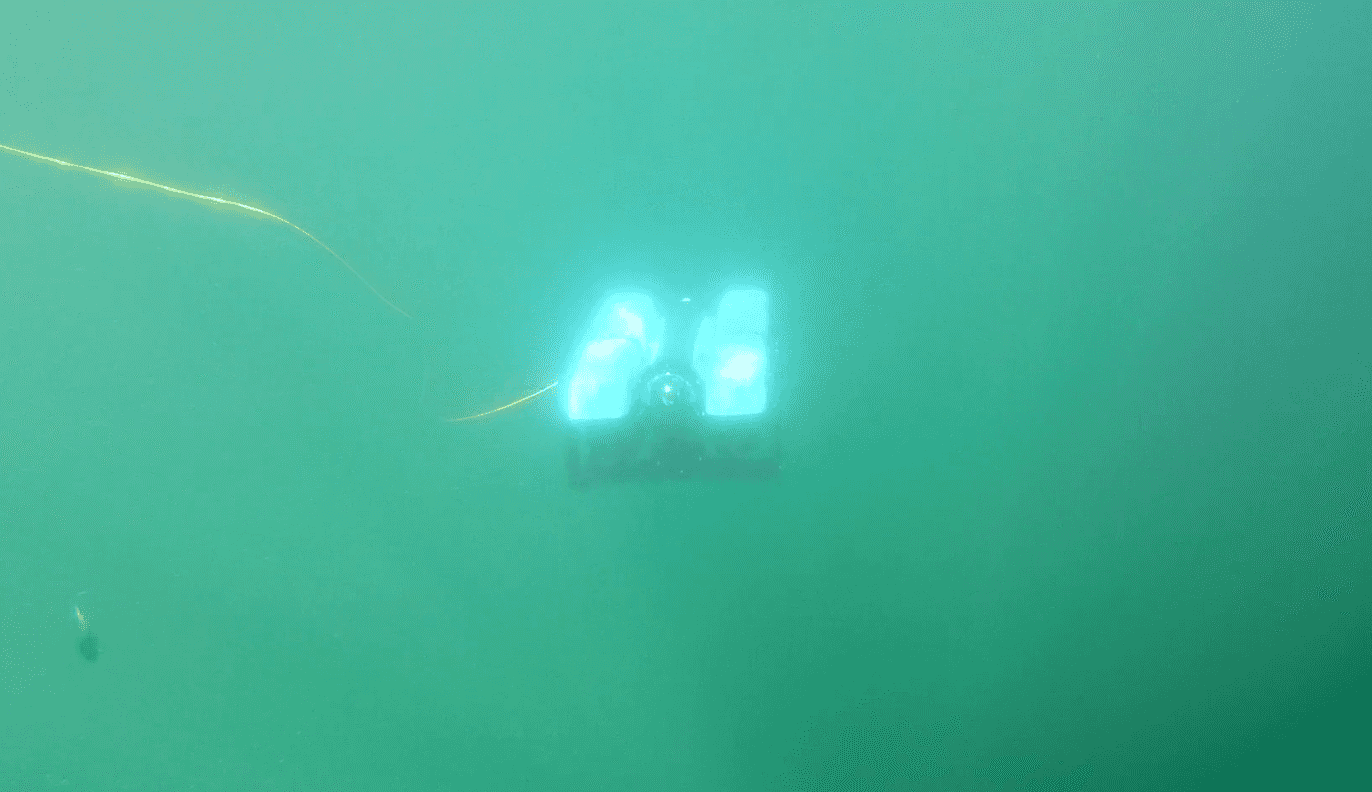

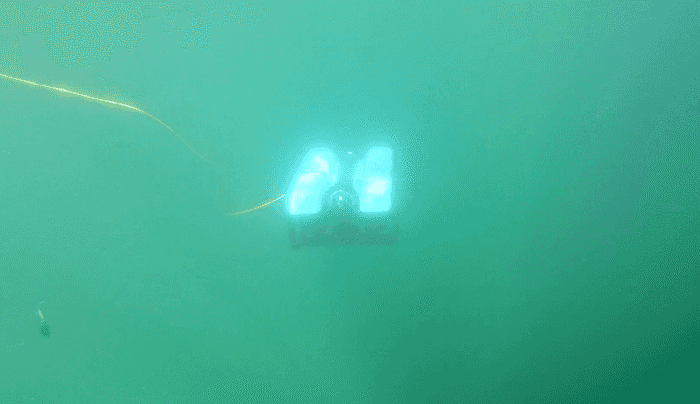

The Bluebottle USV also deployed a Remote Operated Vehicle (ROV) which was controlled manually by a human at safe distance
The Bluebottle USV also deployed a Remote Operated Vehicle (ROV) which was controlled manually by a human at safe distance

The trials at ‘Summerfest’ demonstrated the feasibility of rapidly passing images of contacts detected automatically by AUVs to human analysts situated at a remote distance from the mine field, allowing the humans to select contacts for further action. This is potentially an important step in achieving trusted autonomy.

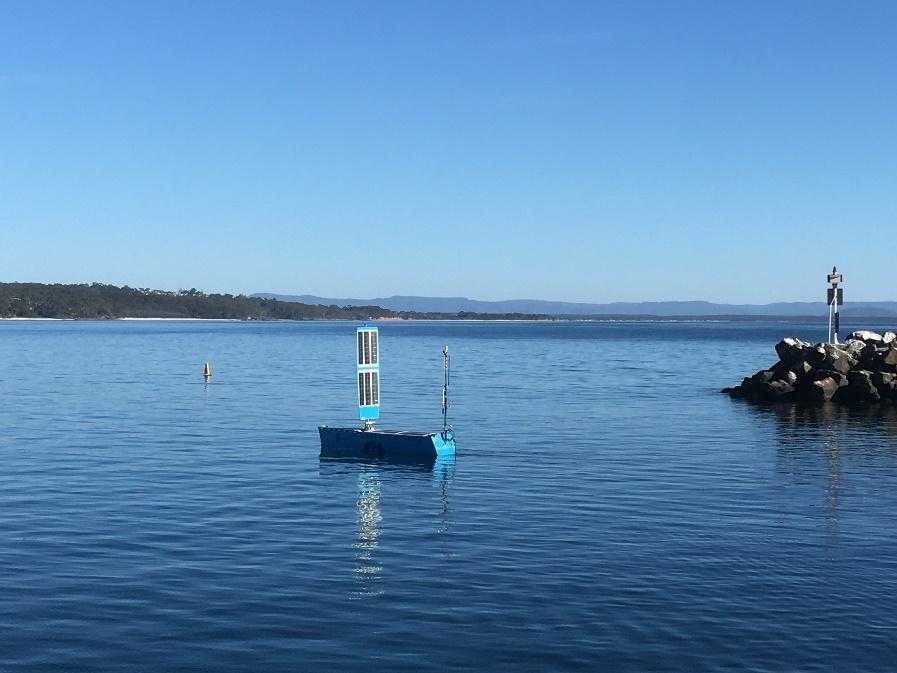

Bluebottle USV ‘Bob’ setting off to persistently monitor Autonomous Underwater Vehicles (AUVs)
Bluebottle USV ‘Bob’ setting off to persistently monitor Autonomous Underwater Vehicles (AUVs)

We’d like to thank Stuart Anstee, Neil Tavener and Phil Chapple from DST Underwater Group Eveleigh for their support, including ‘embedding’ one of their engineers, Russ Webber, in our team at our R&D facility at UNSW for the last month. This Mine Counter Measures (MCM) workflow was a major achievement and built on work we have been doing together since before AW18 Wargames in Nov 2018. We’d also like to thank all the observers and industry participants. I think we showed that Navy, DST Group and Industry working together collaboratively can definitely speed the innovation cycle.

Particularly, we’d like to thank Lieutenant James Keane, RAN, who organised this event. James has been doing research in autonomous underwater vehicle homing and was recipient of this year’s Holthouse Memorial Scholarship.

Finally, we’ve had such positive feedback from this compilation video we made for Pac 2019 that if you missed it, please see below.

We wish you a Merry Christmas and look forward to updating you again soon in 2020.
